Product Specifications
The following are detailed specifications about the 120 Volt white LED Puck Light Recessed / Surface Mount 2700K 260 Lumens.
Our customer service team is available Monday through Friday from 7AM - 5PM, Saturdays from 9AM - 3PM and Sundays from 11AM - 4PM Pacific Time, excluding holidays at (800) 653-6556 to provide any information that is not listed on our website.
| Product Number: | 549122 |
| Manufacturer: | Recesso Lighting by Dolan Designs |
| Model Number: | UCPR2-2700-WH |
| Collection: | LED Under Cabinet |
| Manufacturer Finish: | White |
| Total Wattage: | 4.5 w. |
| Voltage Type: | Line Voltage |
| Voltage Input: | 120 v. |
| Average Rated Life1: | 35,000 hrs |
| Height: | 0.88 in. |
| Width: | 2.75 in. |
| Wattage Per Bulb: | 4.5 |
| Bulb Type: | LED |
| Base Type: | Integrated LED |
| Number Of Bulbs: | 1 |
| Bulb Included: | Yes |
| EnergyStar Compliant: | No |
| Shipping: | UPS Regular |
| Certification Agencies: | CETL |
| Wet Location: | No |
| Damp Location: | No |
| Installation Type: | Convertible |
| Weight: | 0.299 lbs |
| Kelvin Temperature: | 2700 |
| Lumens Per Bulb: | 200 |
| Color Rendering Index: | 90 |
| Made In America: | No |
| Title 24: | Yes |
| Total Lumens: | 200.0 |
Product Description

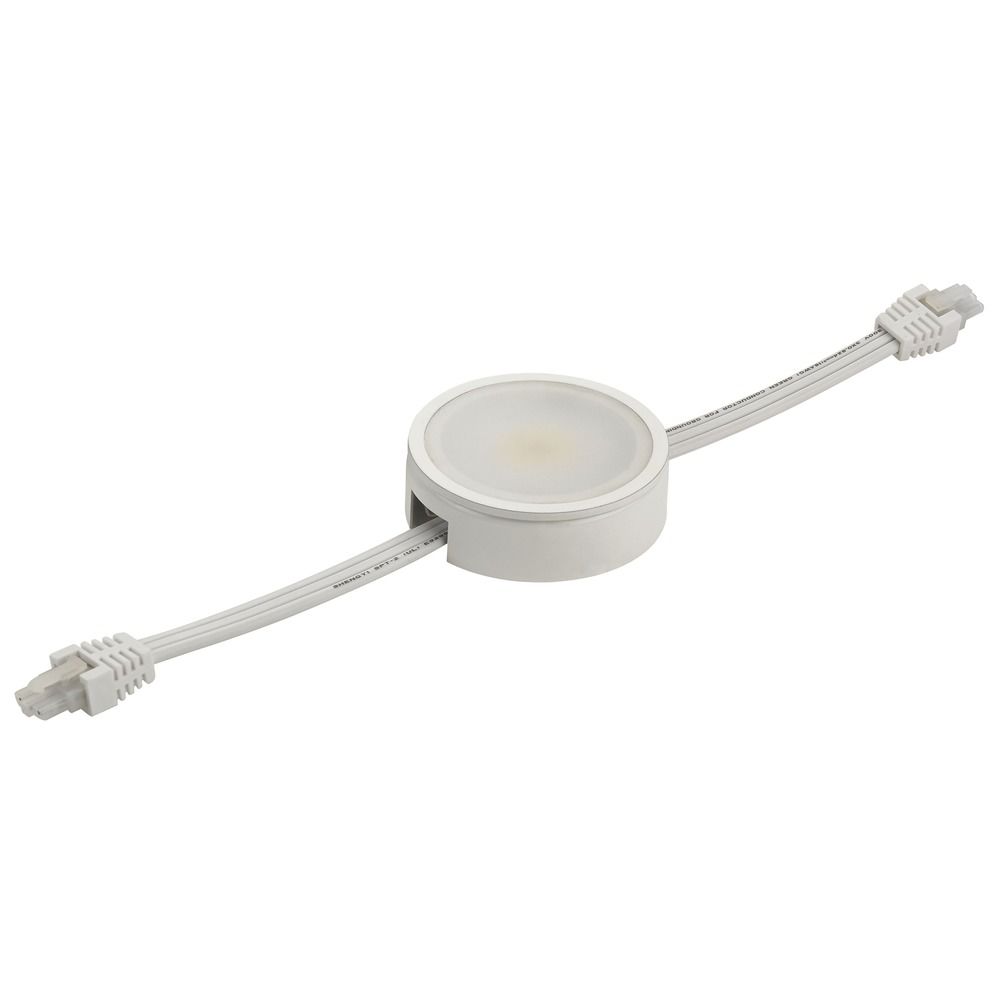

120 Volt white LED Puck Light Recessed / Surface Mount 2700K 260 Lumens

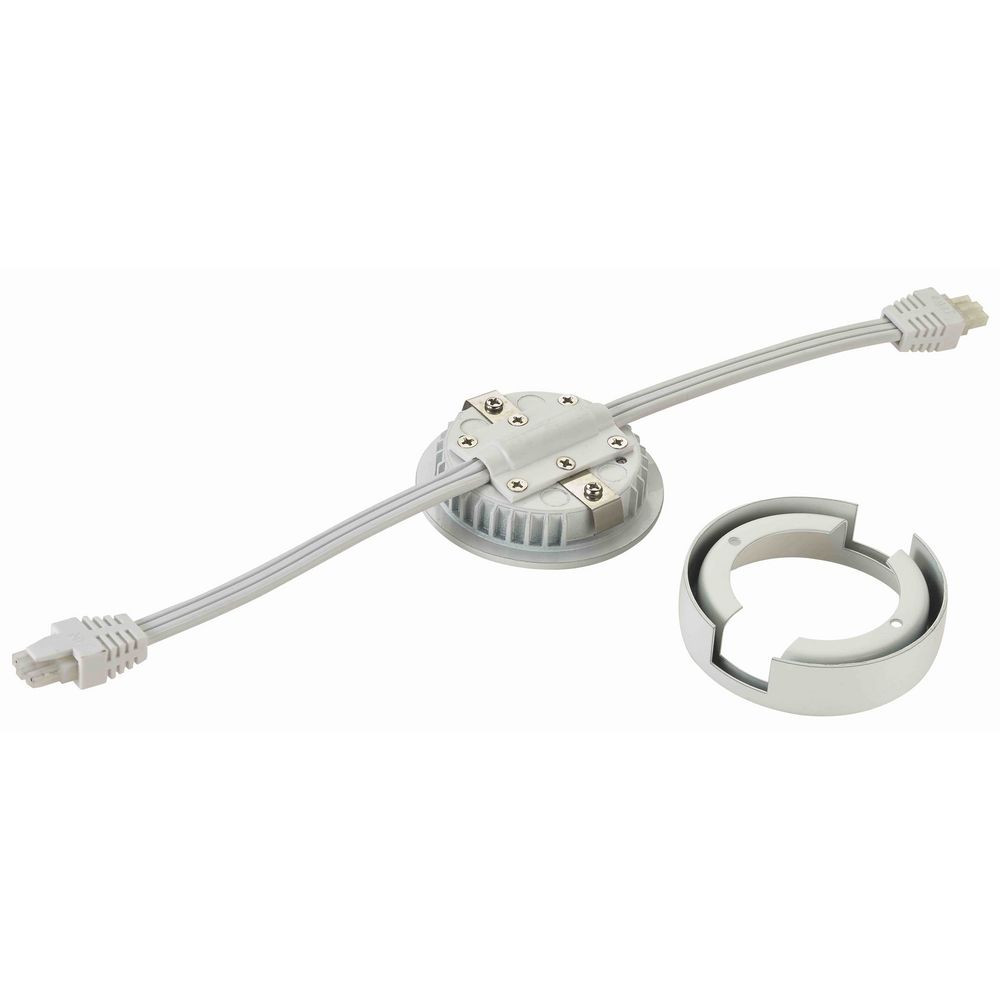

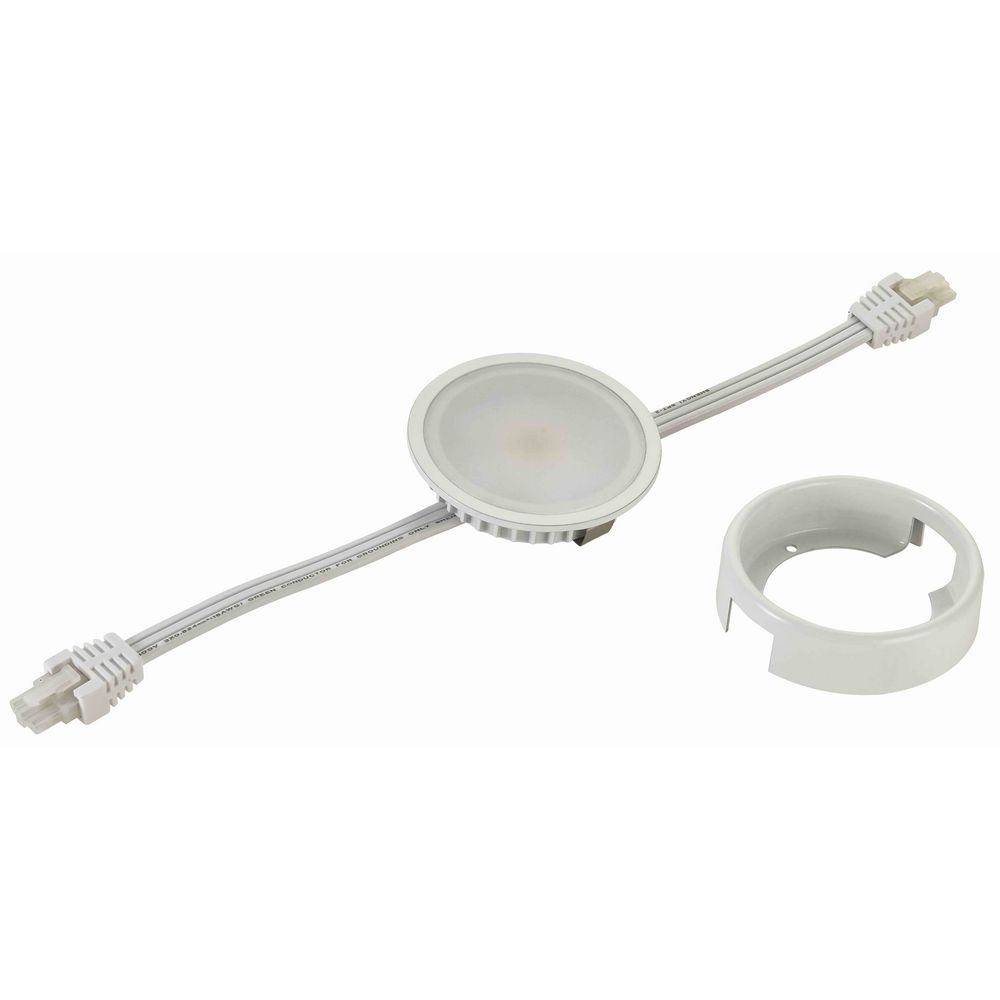

White under cabinet LED puck light that comes with two wires and can be used in the middle of puck light installations. 4.5-watts, 260 lumens, 90 CRI, 2700K warm white color temperature that is equivalent to 20-watt incand scent. Can be installed as surface mount or recessed. 120-volt line voltage. The cutout for recessing the pucks is 2 3/8 diameter hole.Two wire puck light to be installed at the start and in the middle of runs. Suitable for installation in dry locations only. ETL / CETL certified.
Depending on installation you will need to purchase a cord and plug that comes in either a two foot length (product 548982) or six foot length (product 548983) and an interconnect joiner (product 548978). For direct wire installation you will also need the wiring compartment (product 548985) and an interconnect joiner (product 548978). The maximum total wattage of one run for this puck light series is 240 watts or 53 puck lights. For the end of the run you will need to purchase the one wire puck light (product 549114) along with an interconnect joiner (product, 548978). The maximum total wattage of one run for this puck light series is 240 watts or 53 puck lights.If installing where space is needed between lights then interconnect wires are available in various lengths: 6-inch (product 548894), 12-inch (product 548896), 18-inch (product 548955), 24-inch (product 548958), and 36-inch (product 554160). For each interconnect cable you will need to buy two of the interconnect wire joiners (product 548978). Dimmable with compatible dimmers like the Lutron Diva or Lutron Skylark. This puck light has an average lifetime of 35,000 hours and a five year warranty in residential use only.
LED light fixtures and bulbs are environmentally friendly, low cost to run, and low maintenance.
Can be used to comply with 2016 Title 24 requirement
